Eddy Current Non Ferrous Metal Seperator

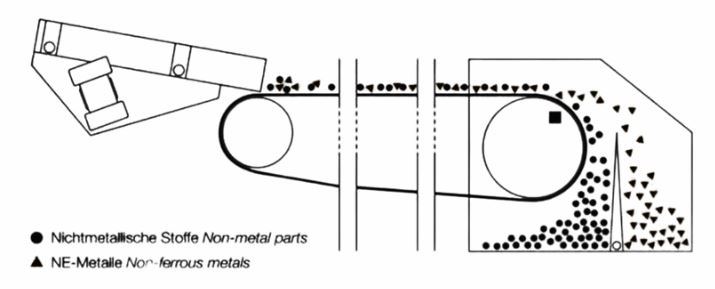

Eddy-current non-ferrous metal separators are used for the separation of non-ferromagnetic metals. Eddy-current separators create an eddy current on it with the rotation of the magnetic drum arranged in a certain fraction on its axis, with this current, non- ferrous materials enter this area, accelerate and are removed from the current. With this method, non- ferrous materials and other materials are separated from each other. Eddy-current separators are produced in different pole numbers depending on the metal grain size. As the grain size decreases, the number of poles in the drum increases. The drums rotate between 2,000 rpm and 3,000 rpm. Belt speed and Eddy drum speed are controlled by a speed- adjustable control panel to optimize separation quality.
Technical Features
- Eddy Current Non Ferrous Metal Seperators differ according to the grain size they separate;
- 40 poles for 0.1mm-5mm small scale materials
- 24 poles for medium-sized materials from 5mm- 50mm
- 12 poles for equipment with 50mm-200mm grain size
Features
Easy belt changing mechanism.
- Easy Automatic lubrication from PLC.
- Design in accordance with OHS rules.
- Ease of maintenance.
- Eddy Current Eccentric Drum
- Belt
- Vibro Feeder
- Roll Drum magnet group
- Drive Group
- Tensioner Group
- Clapper Adjustment Group
- Material Outlet
- PLC panel

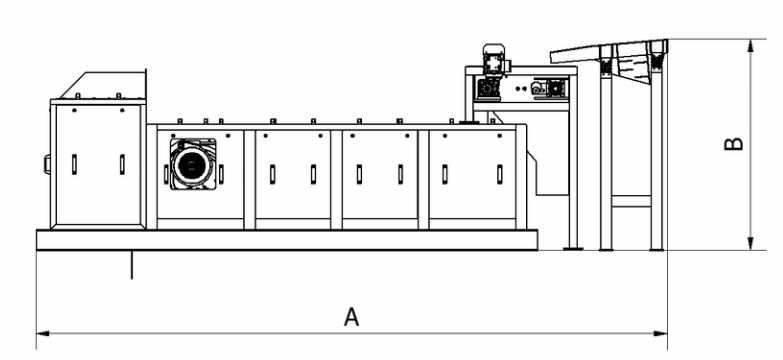

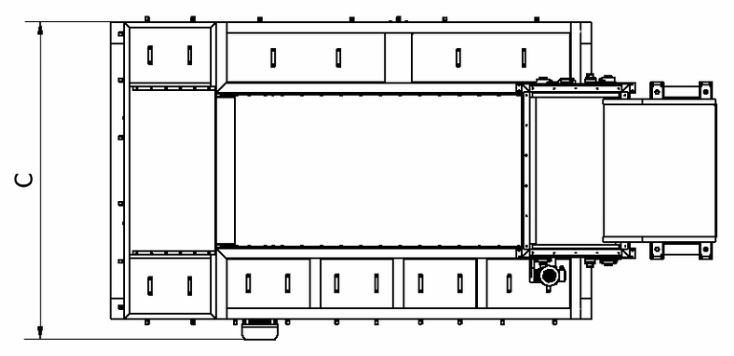

Standard Dimensions
| Type | Length | Width | Height | Belt width |
| ECS-1000 | 4600 | 2220 | 1545 | 1150 |
| ECS-1200 | 4600 | 2420 | 1545 | 1350 |
| ECS-1400 | 4600 | 2620 | 1545 | 1550 |
